MOH 55



MOH 55 / Pro





Features at a glance:



✓ 4000 lumens of power

✓ 10Ah or 6.7Ah power bank

✓ USB-C fast charging

✓ IPX 6 waterproof

✓ Garmin Quick Lock

✓ Helmet, head, handlebar application



Details & Order

↓ more information ↓


Identifier Kennwert
Max. lumens 4000 LM
Light source / LED 2 x CREE XHP-50.2
Light cone / scattered field approx. 160°
Max. range 200 m
Duration 1.5 - 50h
Handlebar diameter 28 - 35 mm
remote control no
E-Bike no
Water resistance IPX6
Power bank And, 7.2V 10Ah / 6.7Ah
charging USB - C
Loading time 10h (5V/2A)
Weight of lamp head headband 152g
Weight power bank 411g/10Ah, 270g/6.7Ah
Abmaße Lampenkopf 55 x 34 x 29 mm
Material Aluminum
Montage System Garmin / Quick Lock

More ↓Information↓


Identifier Kennwert
Max. lumens 4000 LM
Light source / LED 2 x CREE XHP-50.2
Light cone approx. 160°
Max. range 200 m
Duration 1.5 - 50h
Handlebar diameter 28 - 35 mm
remote control no
E-Bike no
Water resistance IPX6
Power bank And, 7.2V 10Ah / 6.7Ah
charging USB - C
Loading time 10h (5V/2A)
Weight lamp 152g
Weight power bank 411g/10Ah, 270g/6.7Ah
Size of the lamp 55 x 34 x 29 mm
Material Aluminum
Montage System Garmin / Quick Lock

A lamp for all outdoor applications


Whether on the handlebars, head or helmet, with the Garmin Quick Lock connection the MOH 55 can be mounted and removed in no time.


Pressure switch with color indicator


The running time at 100% is approx. 1.5 hours and depending on the light intensity up to 50 hours. The control button lights up green when the remaining charge is over 20%, red when the charge is 5% - 20% and flashes red when the charge is below 5%. The power bank itself has 3 LEDs that show the charging status.


The power bank batteries are charged very flexibly using any available USB 2.0 / 3.0 standard interface.


The light beam can be changed by simply clicking on the control button.


Thanks to the memory effect, the MOH 55 remembers the last light mode used.


Pressure switch with color indicator


The running time at 100% is approx. 1.5 hours and depending on the light intensity up to 50 hours. The control button lights up green when the remaining charge is over 20%, red when the charge is 5% - 20% and flashes red when the charge is below 5%. The power bank itself has 3 LEDs that show the charging status.


The power bank batteries are charged very flexibly using any available USB 2.0 / 3.0 standard interface.


The light beam can be changed by simply clicking on the control button.


Thanks to the memory effect, the MOH 55 remembers the last light mode used.


IPX6 Waterproof


Robust and compact design, IPX6 waterproof to withstand even the most difficult weather conditions.




Easy assembly


The MOH 55 uses a Garmin quarter-lock mounting mechanism that assembles and disassembles in one second. In addition, the wide compatibility with helmet, head, TTA and bayonet mounts ensures a lot of flexibility.



The Magicshine headband grants an ergonomic seat with 3 pleasantly wide straps and gel insert.

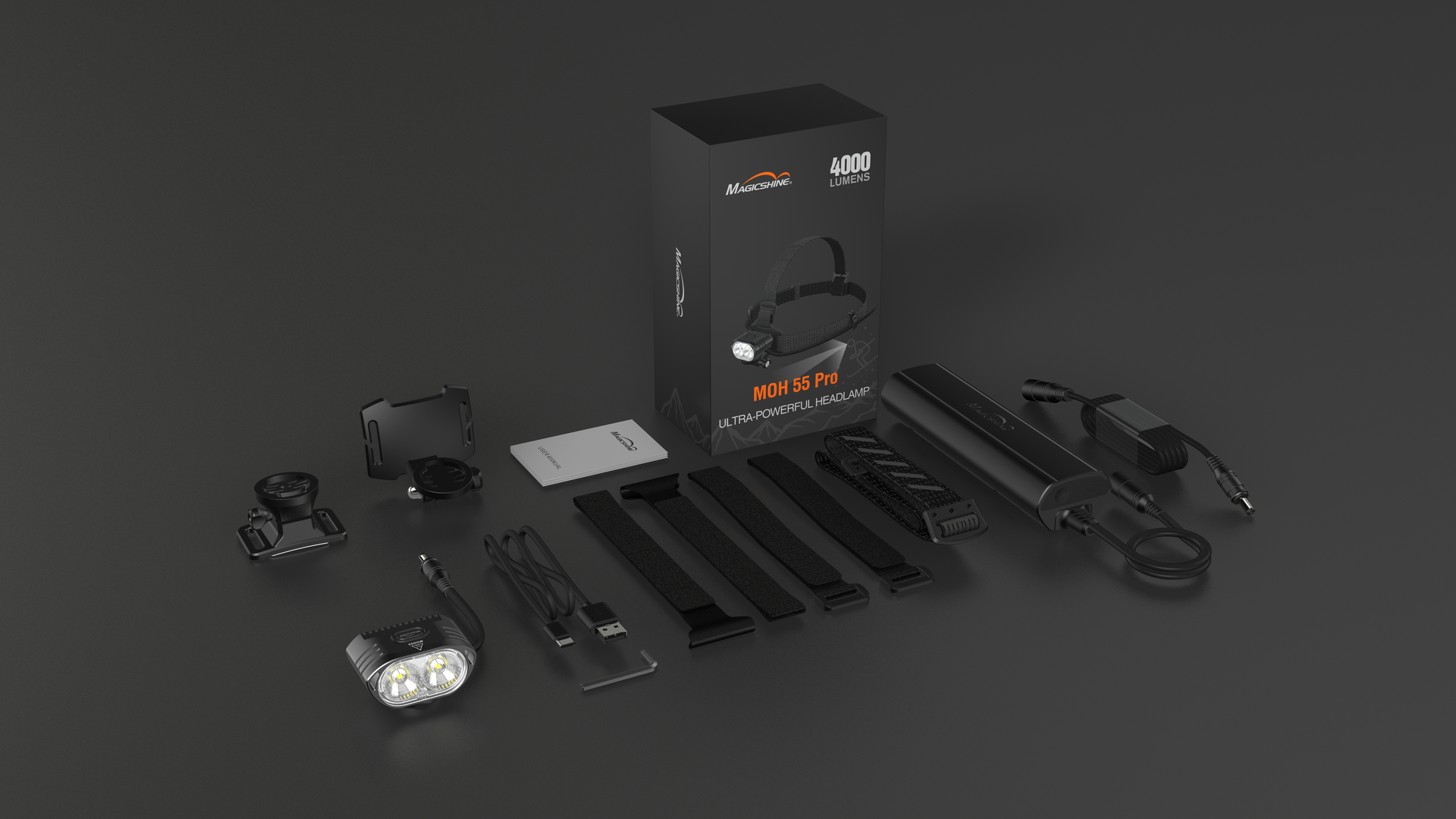

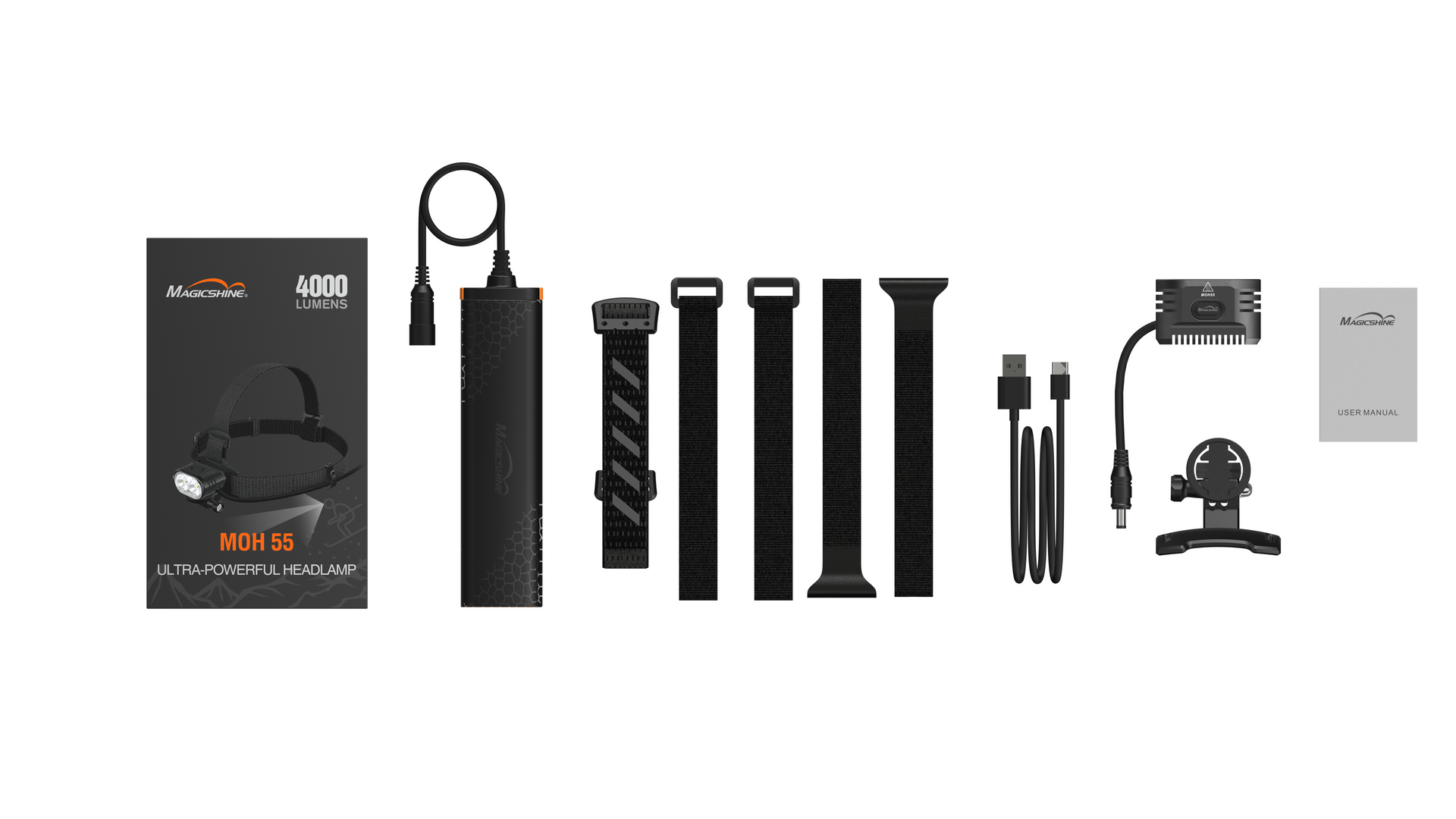

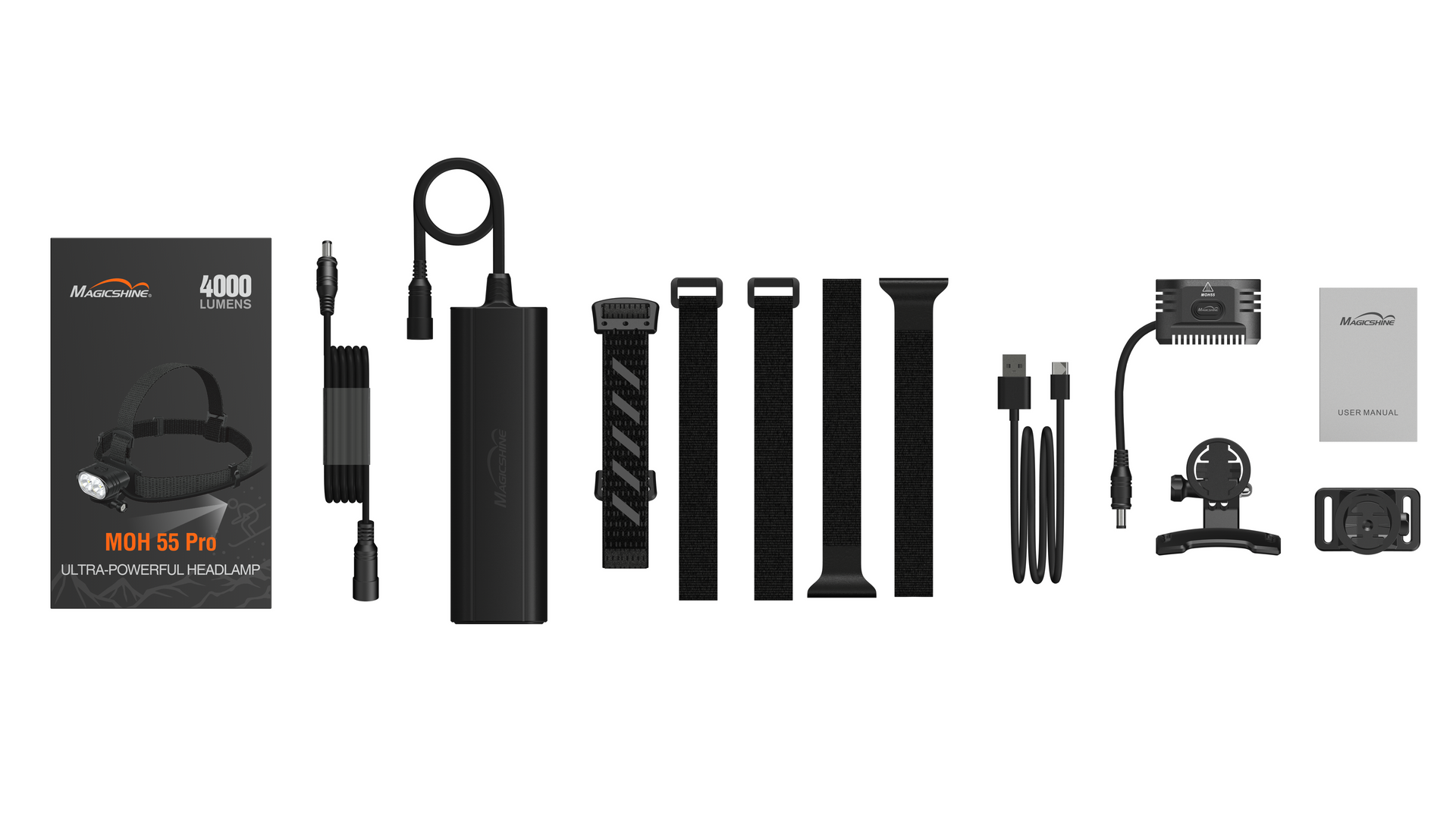

What is included?



1x MOH 55 lamp head with quick lock closure

1x MJ-6118 power bank battery with 10,000 mAh capacity, USB-C connection

(Optionally the lighter power bank with 6,700 mAh capacity)

2x fastening straps for the power bank

1x head bench

1x GoPro mounting plate

1x helmet holder

1x USB-C charging cable

1x 3mm hex key

1x user manual

1x extension cable

1x complete set, ready to go straight away



↓ Options ↓

MOH 55 Per with 10Ah power bank

189€

MOH 55 with 6.7Ah power bank

179€

Details & Order

MOH 55 Pro with 10Ah power bank

189€

Details & Order

MOH 55 with 6.7Ah power bank

179€

Details & Order


Further product information can be found at the following link: https://magicshine.com/pages/user-manual
